P34S02
Three-phase Smart Meter
The meter for commercial and industrial customers. Communicaon capabilies over GSM/GPRS, RF, Opcal, RS485, the meters are aimed to be used for AMI/AMR/AMM and smart grids.
Key Feature
- Import and export active power.
- Import and export reactive power.
- Apparent power.
- Register 13 month of billing data.
- Maximum demand.
- Up to 4tariffs, 100special days, 12season tables, 8week types, 8day tables and 12entries in a day table.
Technical Specification
| Voltage Rangs | Reference Voltage Operang Voltage Range Supply Frequency |
3×240V/400V 60%Un~120%Un 50Hz |
| Current Rangs | Basic Current (Ib) Maximum Current (Imax) Staring Current |
5A 100A ≤4‰Ib |
| Accuracy | Class 1 | |
| Power Consumpon | Voltage Circuit Current Circuit |
≤2W, 10VA ≤0.5VA |
| Insulaon Strength | AC Voltage Test Impulse Voltage Test |
4kV during 1min 1.2/50µs mains connecons 6kV |
| Communicaon Interface | GSM/GPRS/RF/Opcal port/RS485 | |
| Temperature | Operaon Range Limit Range |
-25℃~70℃ -40℃~80℃ |
| Protection | Power overload Line/Load reversal Current overload Over/Under voltage |
|
| RTC Accuracy | ≤0.5s/d | |
| IP Rang | IP54 | |
| Net Weight | 1.65kg | |
| Service Life | 15 years |

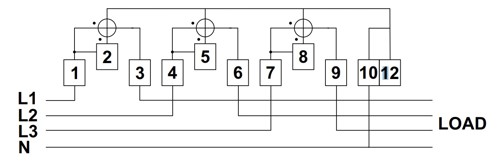

Connection Diagram without disconnector
Dimension
